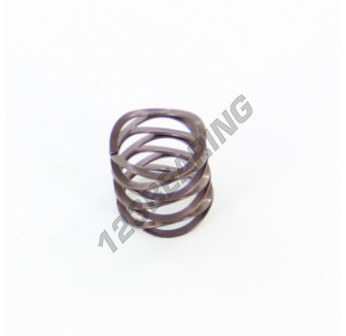

Multiwave Compression Spring
0,3
Part number : MWCS-9.5-6.4-0.3-8.9-SS
Description
Multiwave Compression Spring MWCS-9.5-6.4-0.3-8.9-SS
You can find all the information you need about our products in our expert's advice, by clicking here Here
5 parts in stock
Last departure in
Secure payment
Need help or advice?
02038.087.274
Description
Multiwave Compression Spring MWCS-9.5-6.4-0.3-8.9-SS
You can find all the information you need about our products in our expert's advice, by clicking here Here
Secure payment
Need help or advice?
02038.087.274

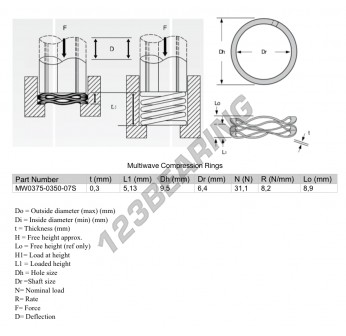

| Brand | GEN |
|---|---|
| Weight | 1 g |
| Thickness | 0,30 mm |
| Stiffness | 8.2000 |
| Axis size | 6,40 mm |
| Nominal load | 31,10 N |
| Housing size | 9,50 mm |
| Packaging | 1 |
| Loaded height | 5.1300 |
| Clearance height (for reference) | 8,90 mm |
Multiwave Compression Spring MWCS-9.5-6.4-0.3-8.9-SS
