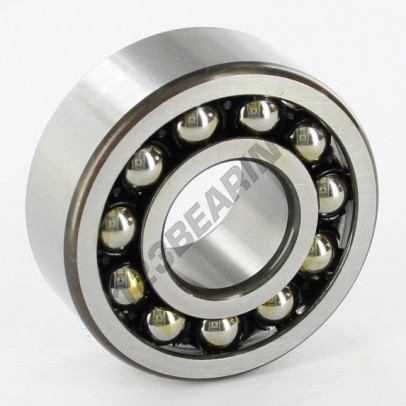

Self aligning ball bearing 2305-TVH-C3-FAG

25 25 62 62 24 24

Part number : 2305-TVH-C3-FAG

FAG

Description

The Self Aligning Ball Bearing, known as 2305-TVH-C3-FAG FAG, has an inner diameter of 25 mm, an outer diameter of 62 mm and a thickness of 24 mm.

Your price: N/A

  8 to 10 days (2 days ago )

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

CUSTOMERS ALSO BOUGHT
Rotary shaft seal - OAS-17X28X7-NBR GEN

ROTARY SHAFT SEAL OAS-17X28X7-NBR

17 17 28 28 7 7
Deep groove ball bearing - 6207-SKF SKF

DEEP GROOVE BALL BEARING 6207-SKF

35 35 72 72 17 17
Thrust washer - WS4565-IKO IKO

THRUST WASHER WS4565-IKO

45 45 65 65 4 4
TECHNICAL DATA
  • BRAND
  • N° EAN13
    4012801161169
  • INSIDE DIAMETER
    25  MM
  • OUTSIDE DIAMETER
    62  MM
  • THICKNESS
    24  MM
  • WEIGHT
    336  G
  • DYNAMIC LOAD
    25  KN
  • STATIC LOAD
    6.6  KN
  • PACKAGING
    1
  • STANDARD
    No standard
Description

The Self Aligning Ball Bearing, known as 2305-TVH-C3-FAG FAG, has an inner diameter of 25 mm, an outer diameter of 62 mm and a thickness of 24 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
