V-Ring Seal
Part number : VA28-FPM
Description

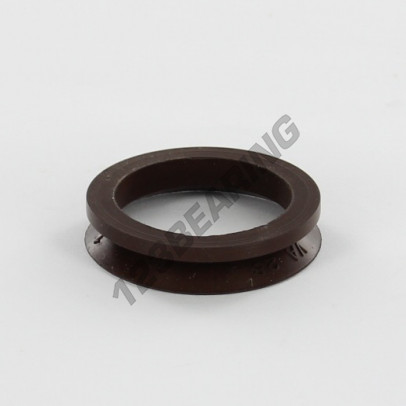

The V-Ring Seal with the reference VA28-FPM has an inner diameter of 28 mm and a thickness of 7.5 mm. It is made of FPM.
How to read the reference of a v-ring seal?
You can find all the information you need about our products in our expert's advice, by clicking here Here
7 parts in stock
Need help or advice?
02038.087.274
Description
The V-Ring Seal with the reference VA28-FPM has an inner diameter of 28 mm and a thickness of 7.5 mm. It is made of FPM.
How to read the reference of a v-ring seal?
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
02038.087.274
Brand | GEN |
---|---|
Inside diameter | 28 mm |
Thickness | 7,50 mm |
Material | FPM |
Type | VA |
Weight | 3 g |
Packaging | 1 |
The V-Ring Seal with the reference VA28-FPM has an inner diameter of 28 mm and a thickness of 7.5 mm. It is made of FPM.
How to read the reference of a v-ring seal?
Example:
VA20-NBR
Where
VA = gasket shape
20 = shaft diameter on which gasket will be mounted (approximate)
NBR = materialHow to read the suffixes of a v-ring? (type of rubber)
FOR OILS AND HYDROCARBONS NBR = Nitrile = Butadiene rubber - Acrylonitrile
from -30°C to +110°C FPM = Viton = Fluorinated Rubber
from -20°C to +200°CMy seal does not make the dimensions indicated on the site, why?
The dimensions indicated for the V-RING type seal are those of the joint mounted.
They must therefore correspond to what is indicated on the technical sheet when the seal is mounted on its axis.
